AI-9 Fiber Fusion Splicer

https://www.circonllc.com/web/image/product.template/509/image_1920?unique=e3c1fab

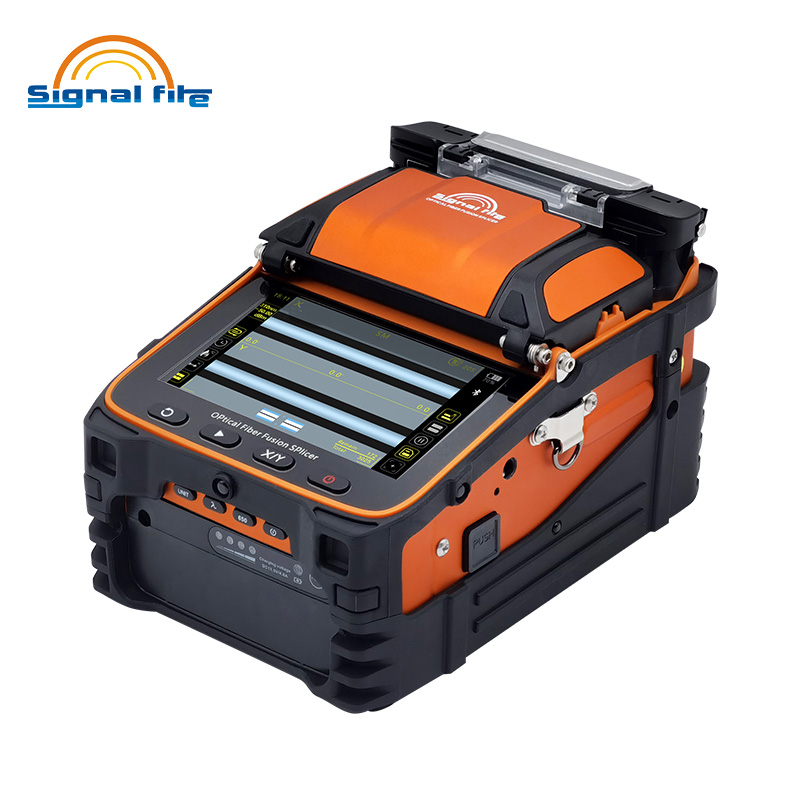

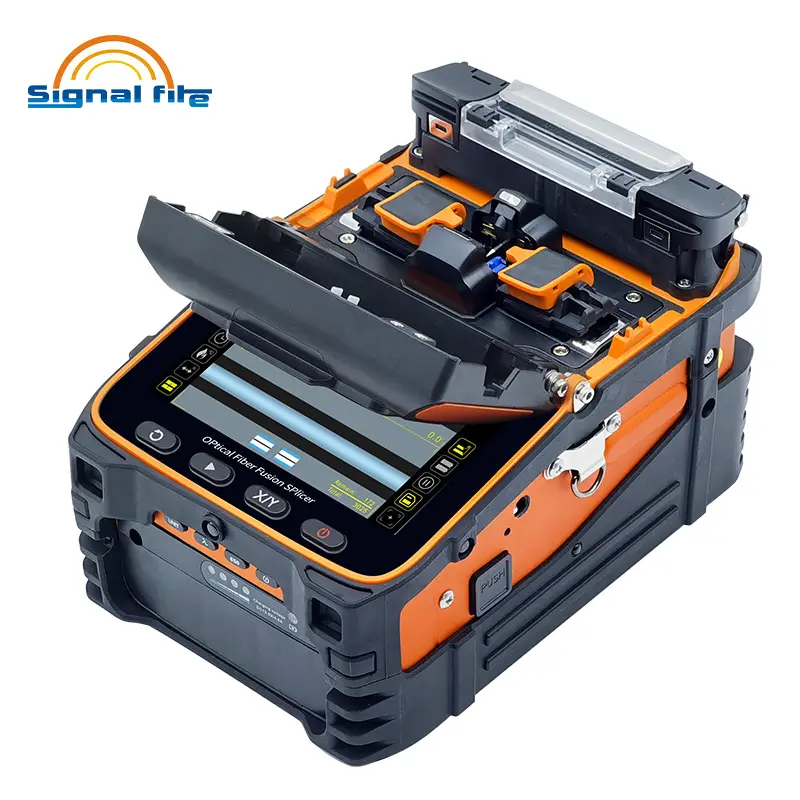

The SignalFire AI-9 is a high-speed, precision fiber fusion splicer designed for professional use in FTTH installations, security surveillance systems, and challenging environments like high altitudes, deserts, and extreme cold. With intelligent core alignment and six motor drive control, it delivers stable splicing performance that boosts productivity and reliability in the field.


Its 5-inch high-resolution LCD with 300x magnification ensures accurate fiber inspection, while advanced processing capabilities allow for ultra-fast operation — just 5 seconds to weld and 15 seconds to heat. Supporting up to 260 splices per charge, the AI-9 is built to keep up with demanding workloads without compromise.

Features:

  • Six-Motor Core Alignment: Ensures precise fiber positioning for superior splice quality
  • Fast Welding & Heating: 5 seconds for splicing, 15 seconds for heating — improve efficiency by up to 50%

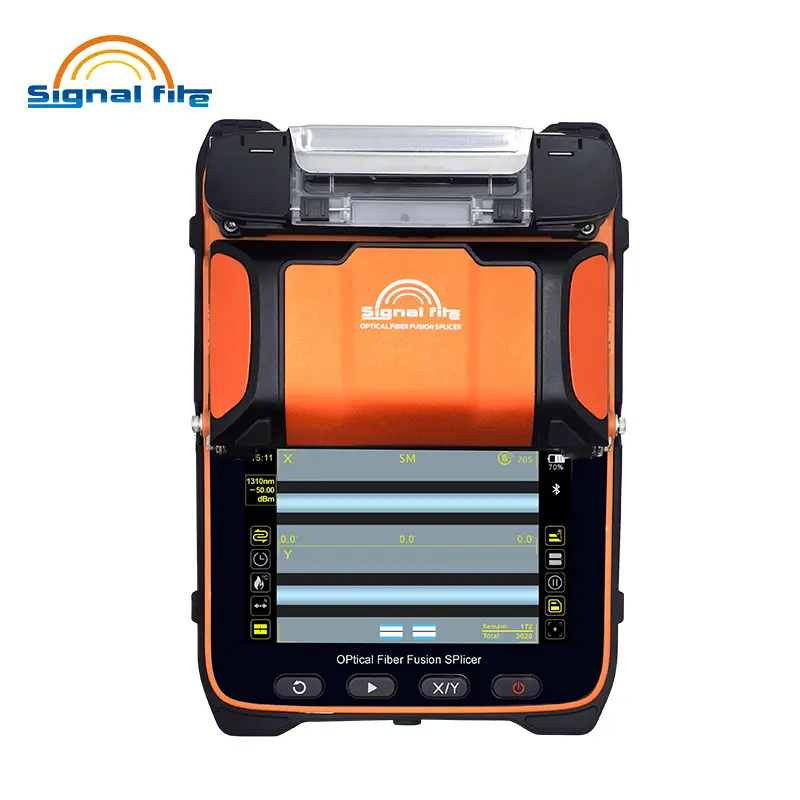

  • High-Resolution Display: 5" LCD screen with 300x magnification for detailed fiber visualization
  • Optical Power & Red Light Detection: Built-in functions for quick signal verification and troubleshooting
  • Industrial Quad-Core Processor: Enables rapid test cycles and snappy response times
  • Battery Capacity: High-performance lithium battery supports ~260 splices per full charge
  • Built for Harsh Conditions: Operates reliably in extreme weather and environments
  • Smart Design: Lightweight and rugged for convenient field deployment

Specifications:

ParameterDetails
Splicing Time5 seconds
Heating Time15 seconds
Display Size5" HD LCD touchscreen
MagnificationUp to 300x
Alignment TypeCore alignment (6 motor control)
ProcessorIndustrial-grade quad-core CPU
Battery LifeSupports up to 260 splices per charge
Optical DetectionOptical power measurement, red light verification
Operating ConditionsStable performance in high-altitude, desert, and cold environments
Application AreasFTTH, security monitoring, field repairs
